NOVA NOTE:
V8 ALTERNATOR ADAPTER BRACKET FOR HEADERS & SHORT WATER PUMP, DRIVERS SIDE

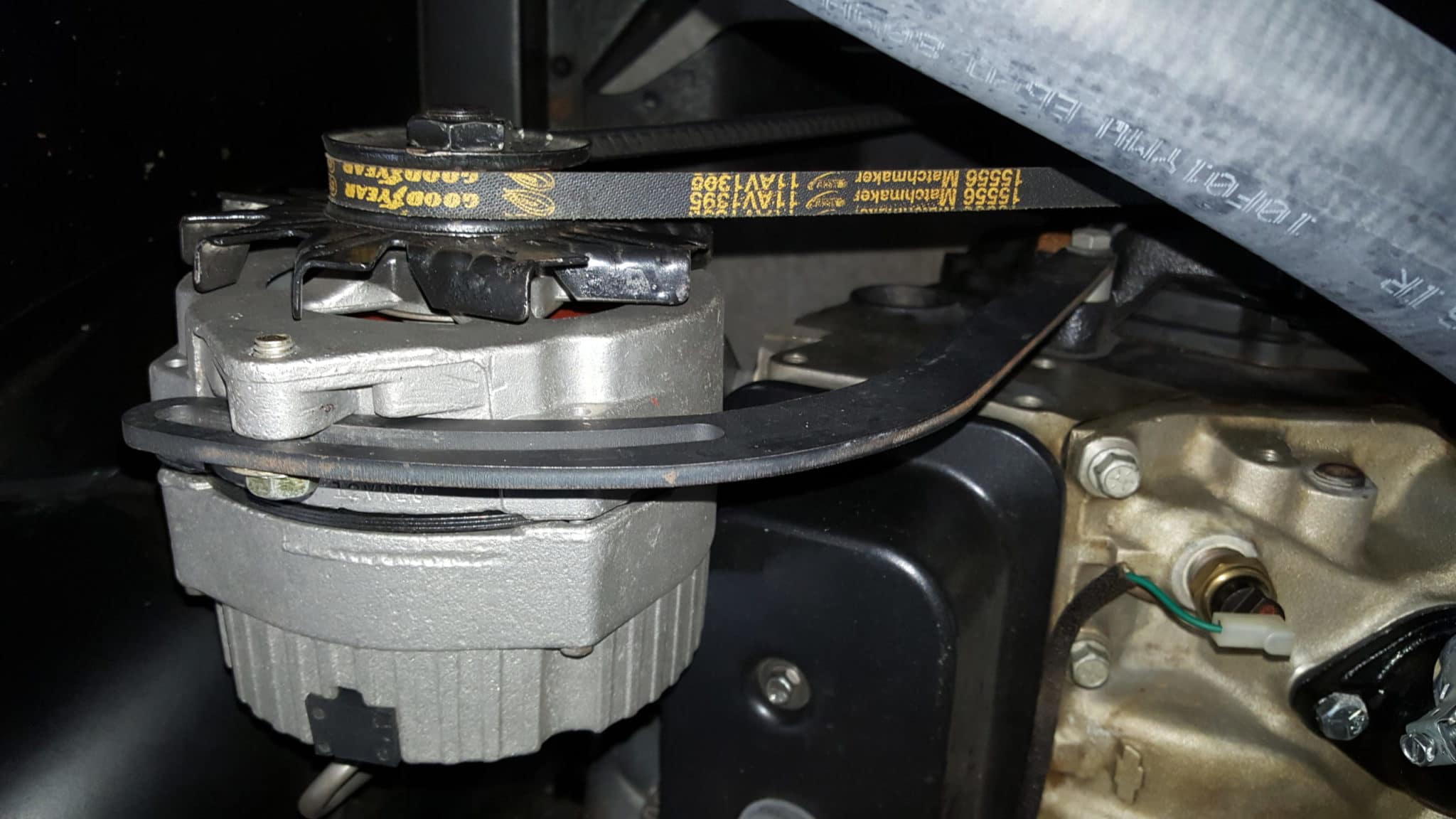

ALSO NEED STOCK LOWER V8 ALTERNATOR BRACKET 01017 AND UPPER ALT ADJUST BRACKET 02008

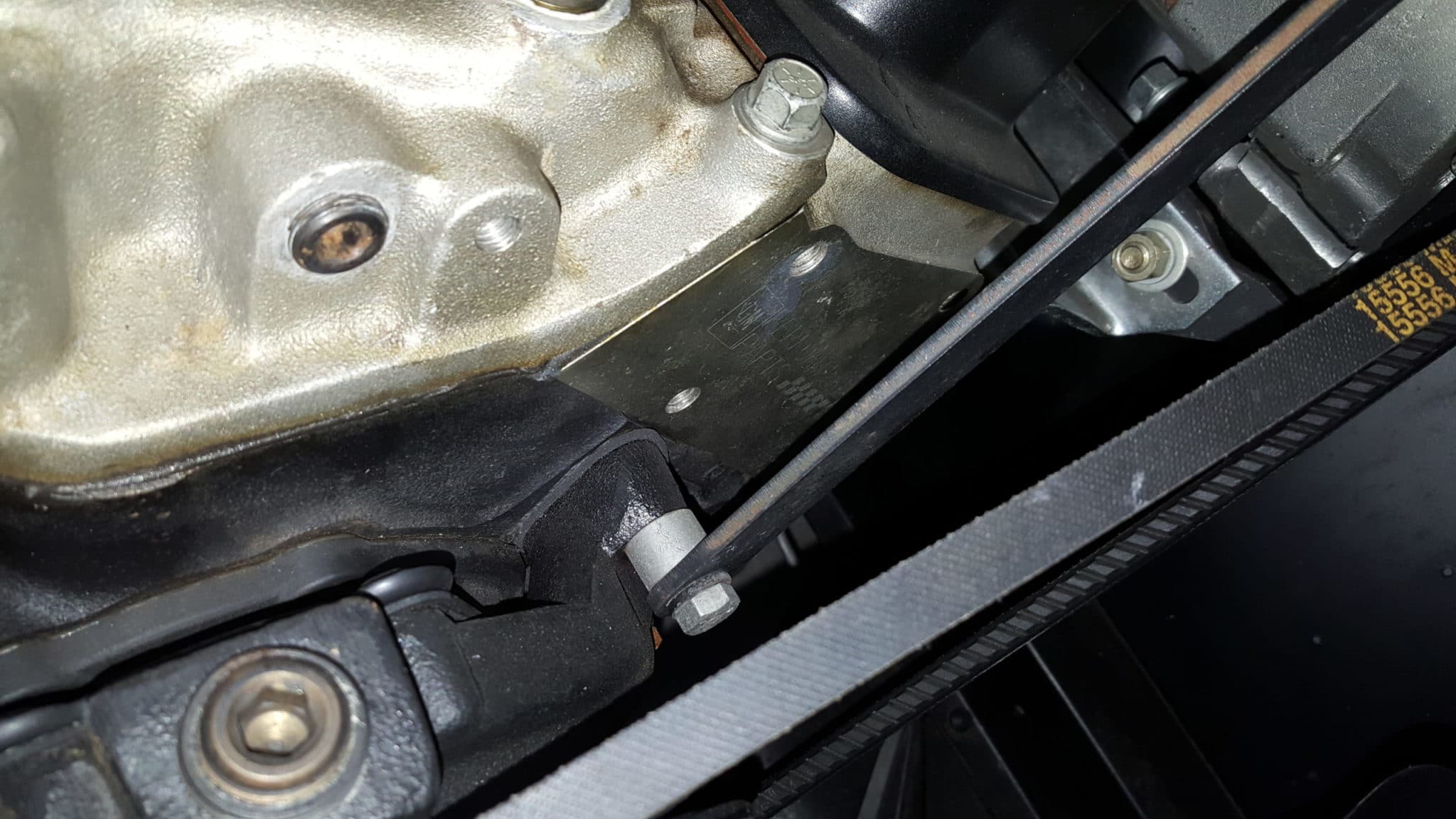

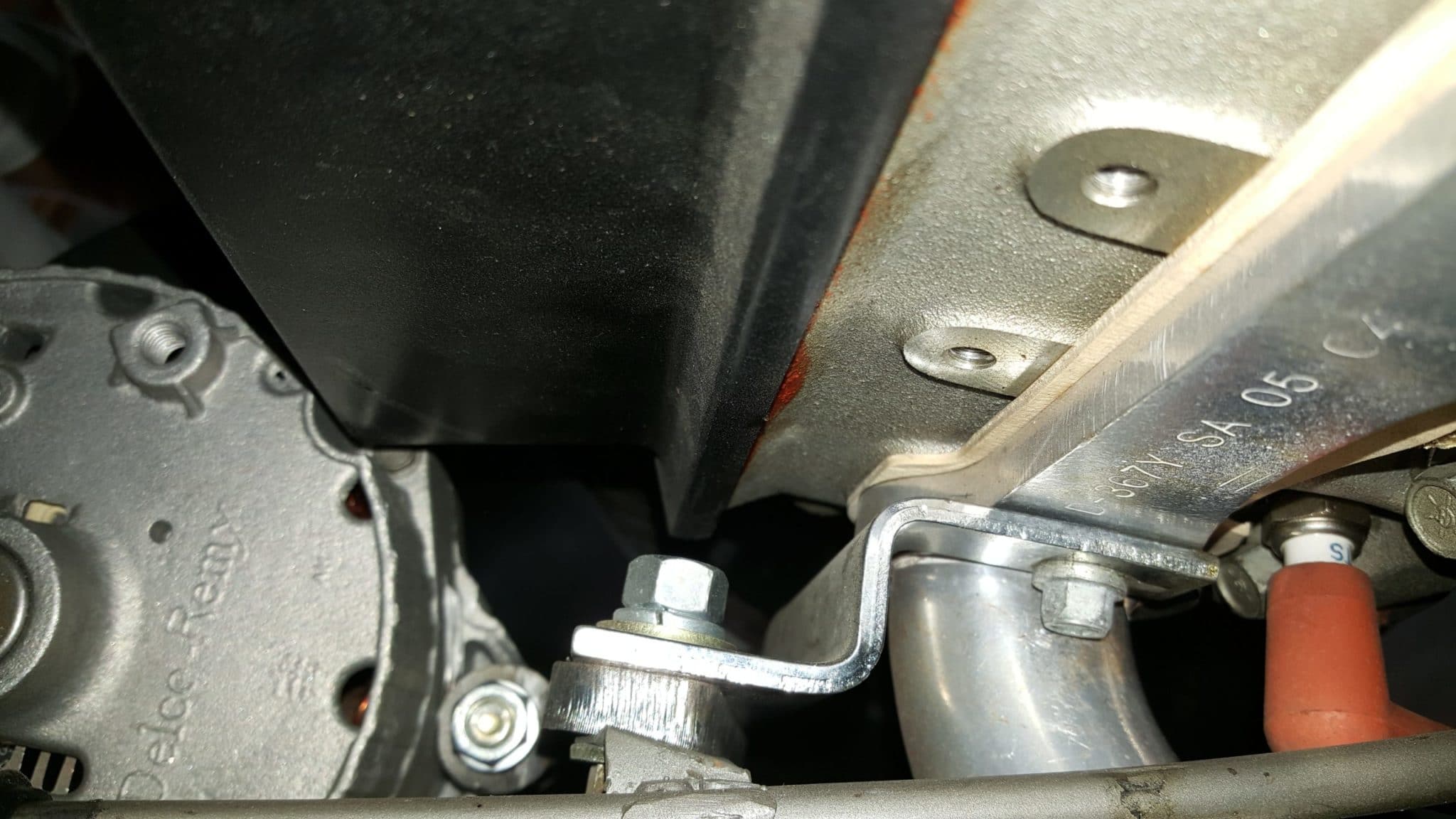

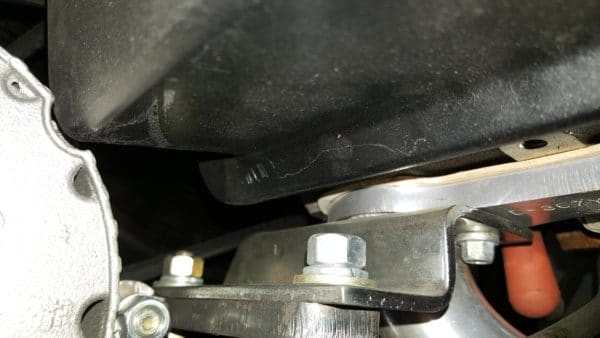

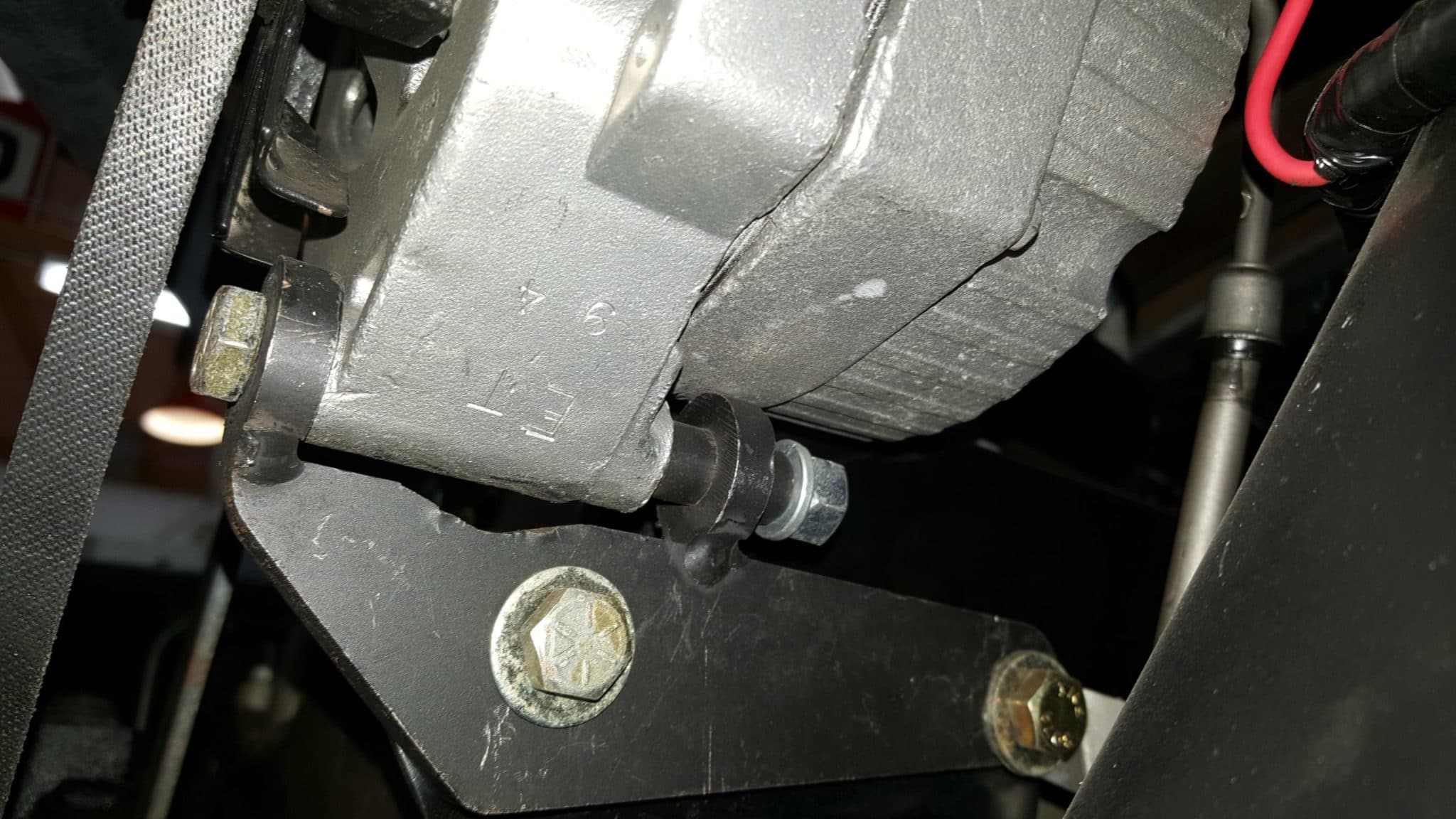

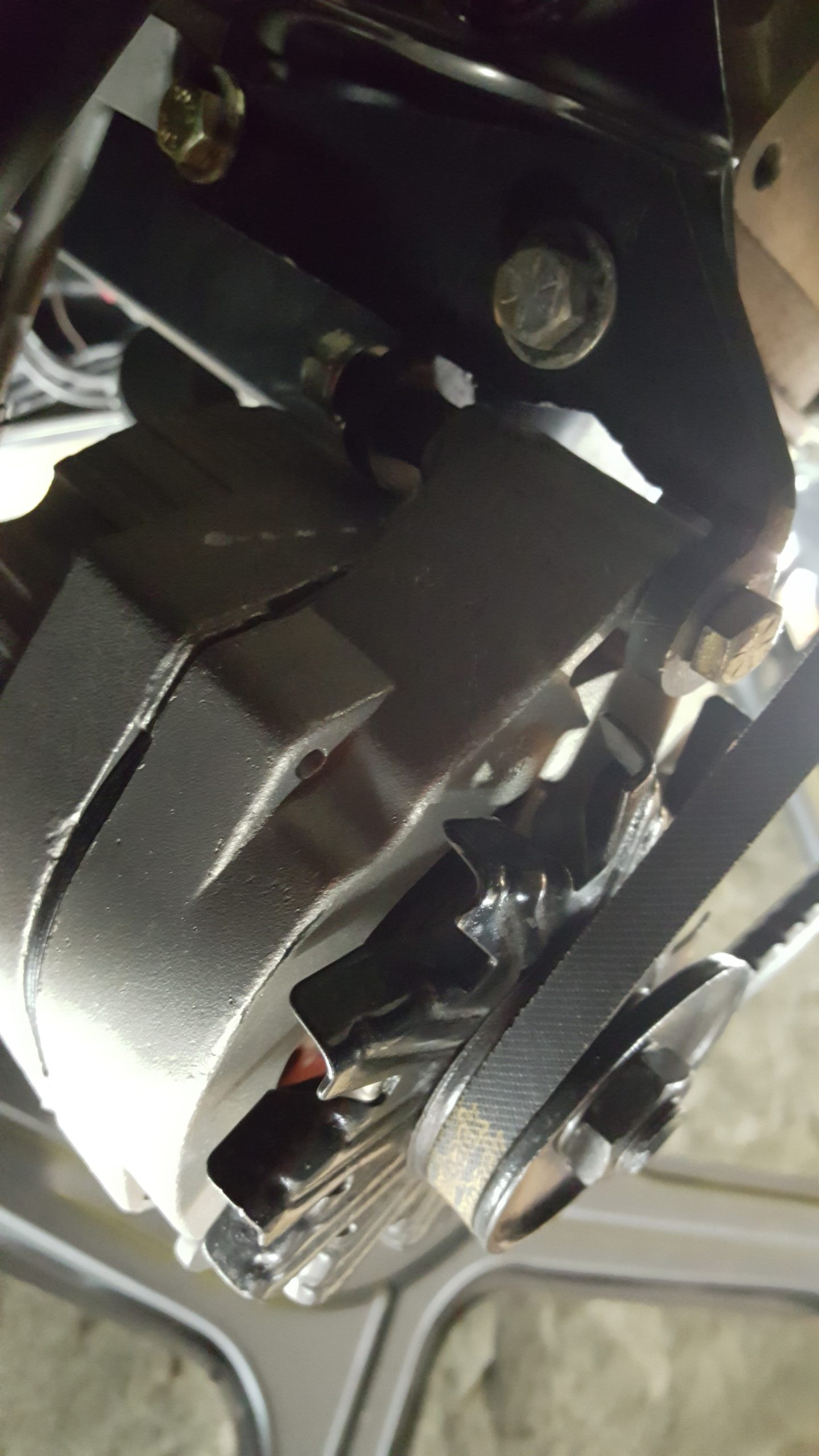

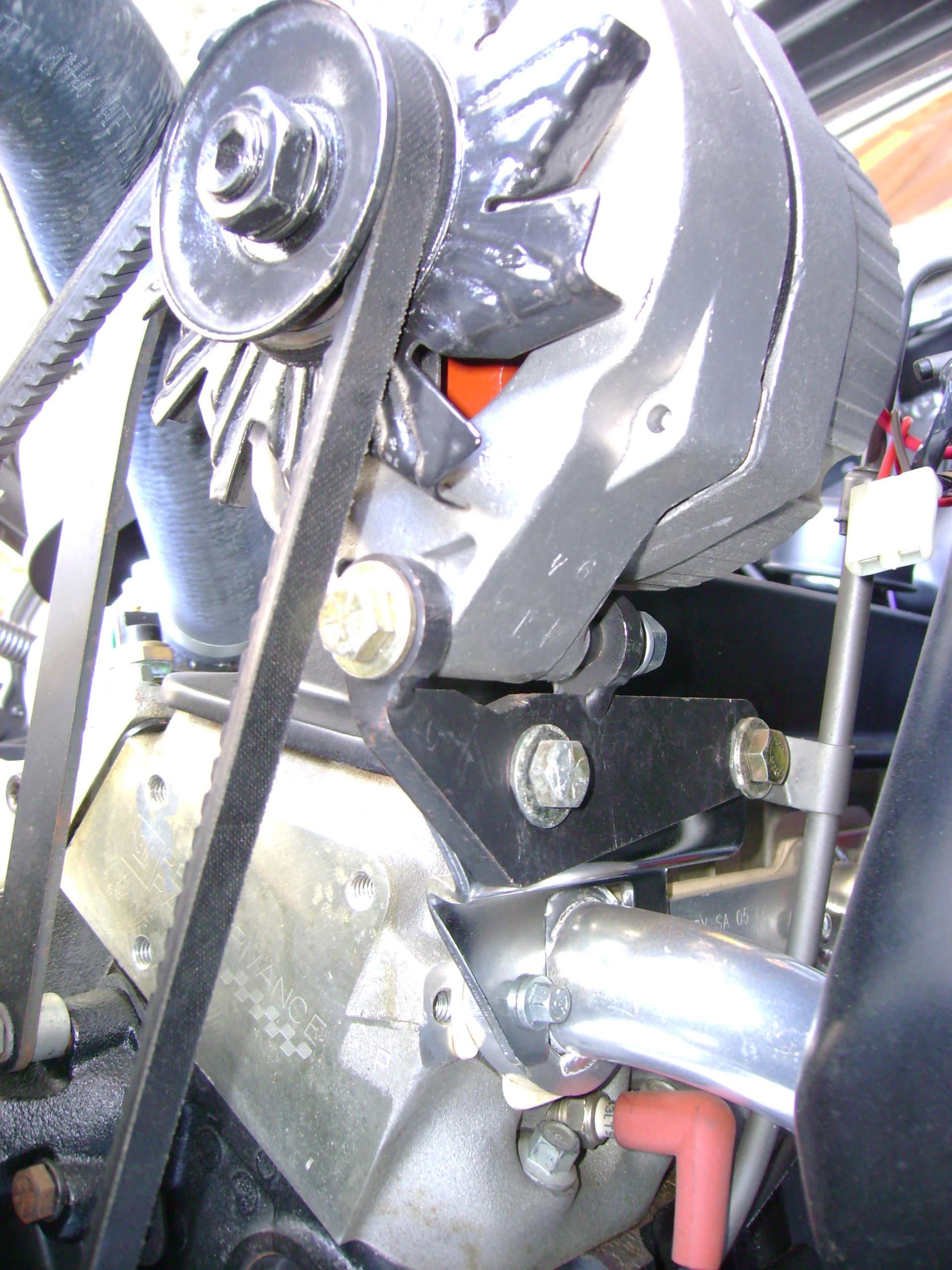

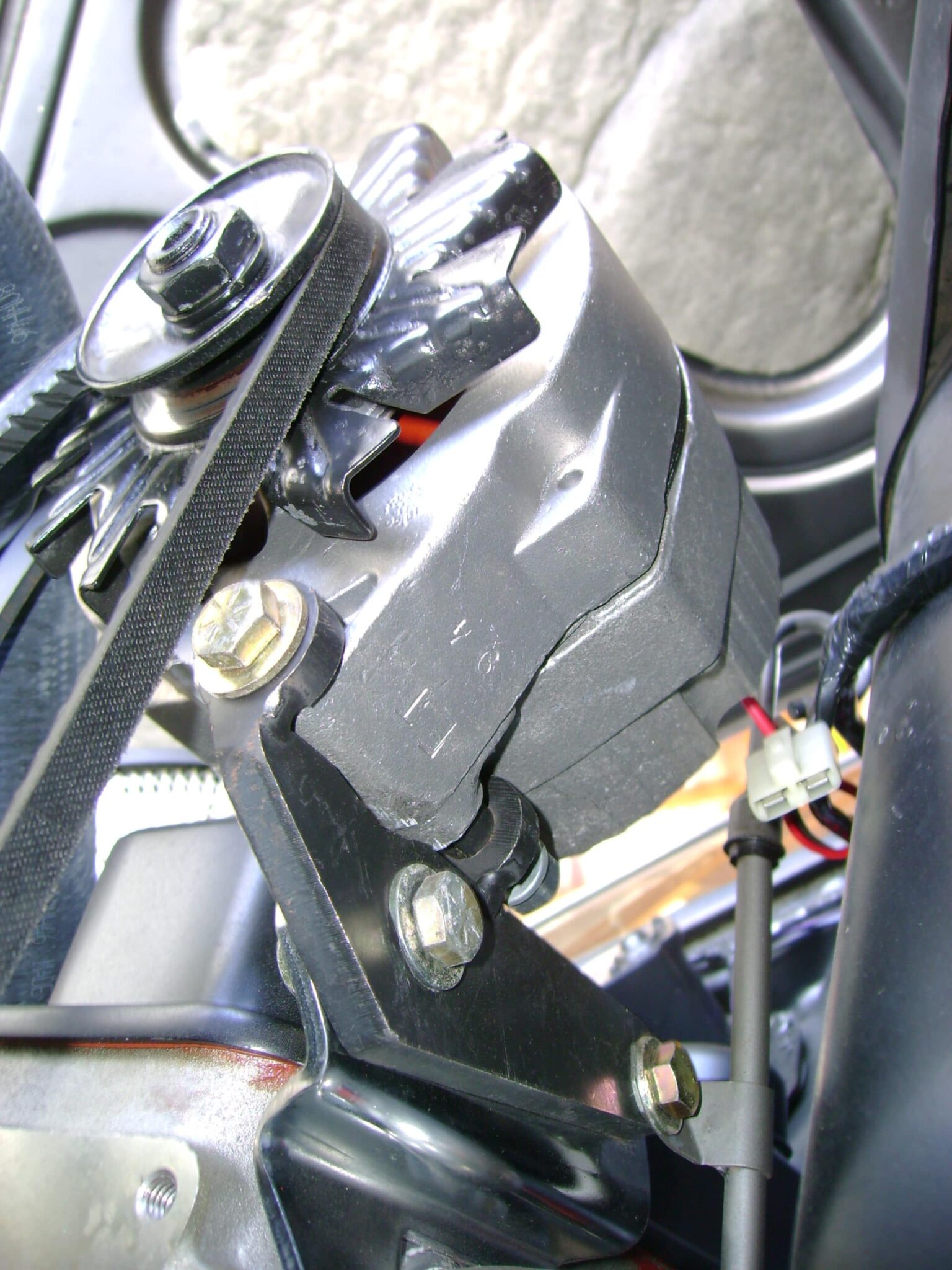

WHEN USING AFTERMARKET EXHAUST HEADERS, INSTALL THIS BRACKET ON THE DRIVERS SIDE TWO FRONT HEADER BOLTS.
THIS BRACKET TAKES THE PLACE OF THE LOWER ALT MOUNTING BOSS CAST INTO THE FACTORY EXHAUST MANIFOLD.

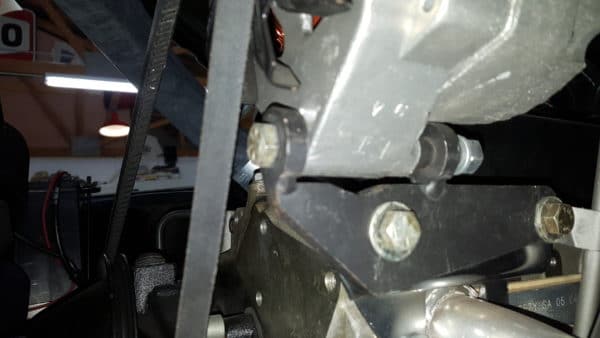

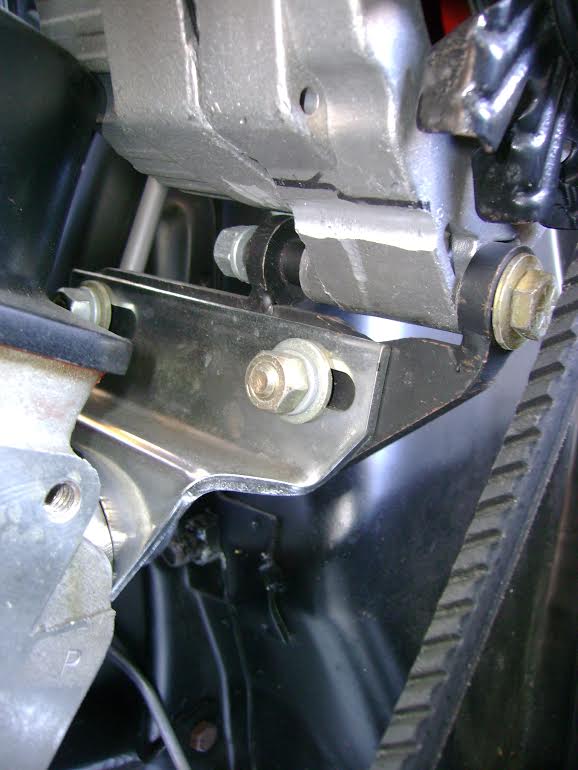

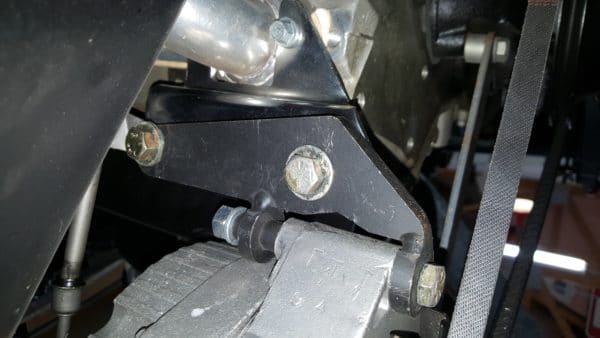

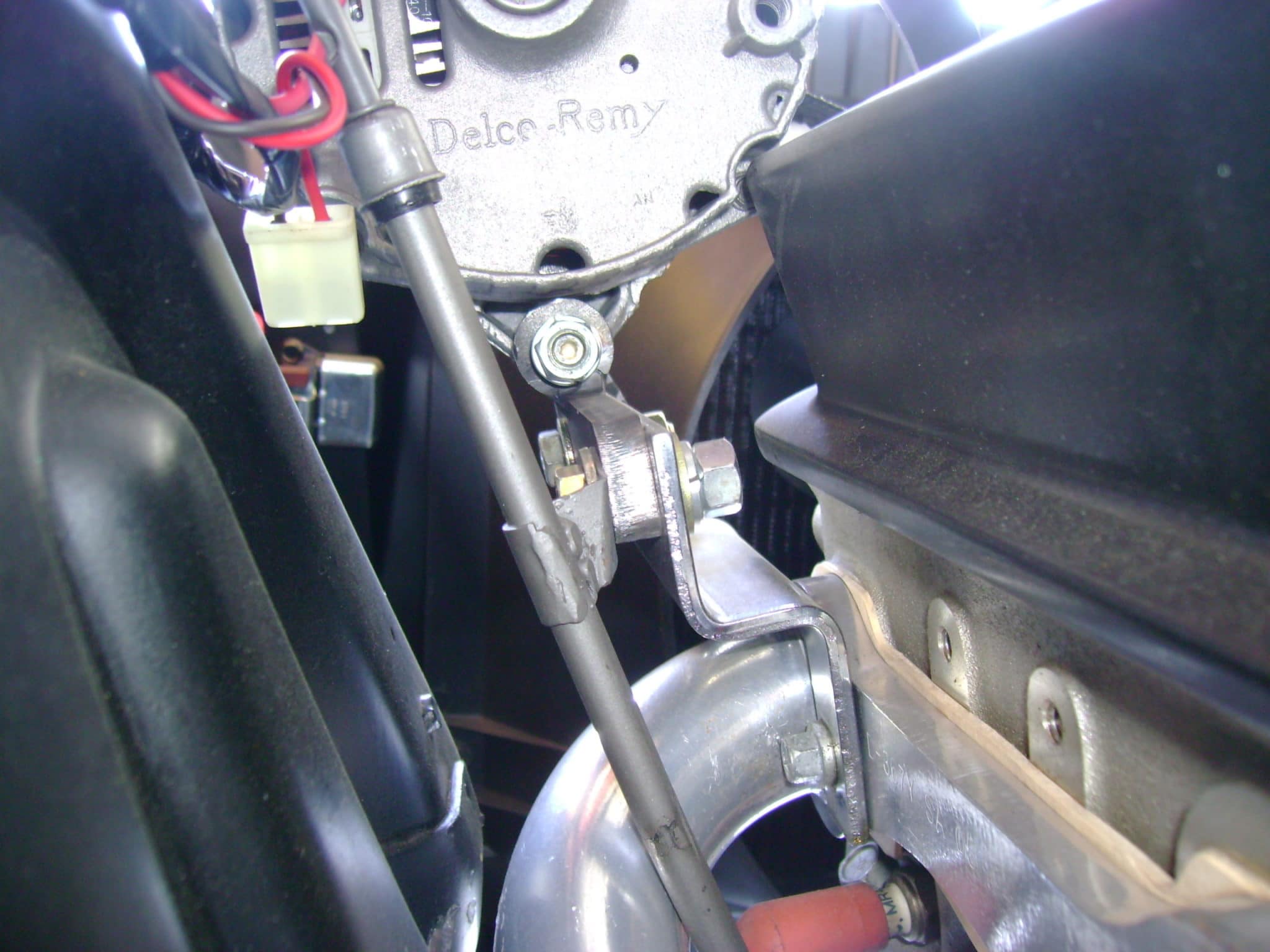

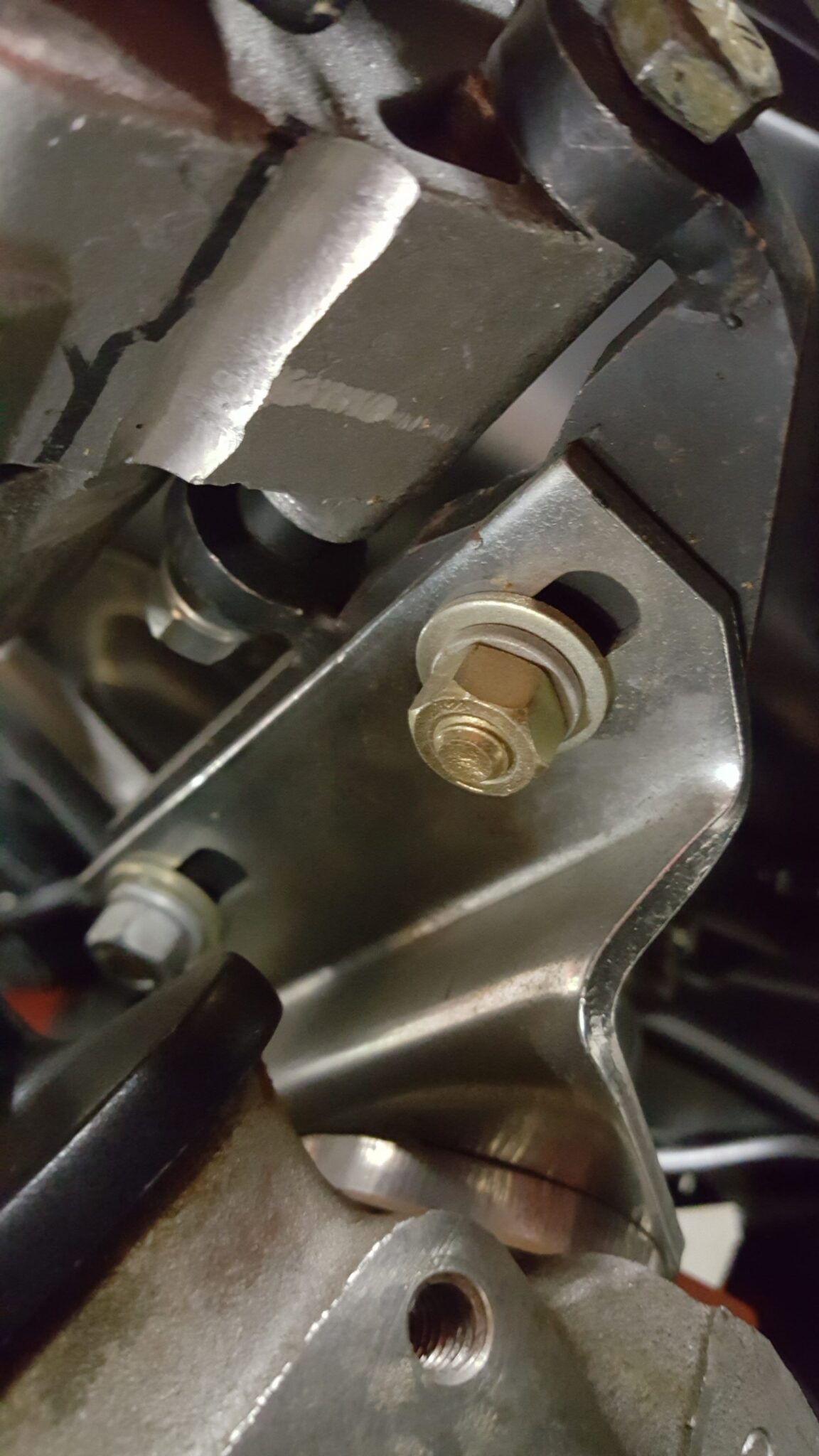

BOLT THE STOCK V8 LOWER ALT PIVOT BRACKET PT# 01017, TO THE ADAPTER BRACKET.

V8 DIP STICK TUBE MAY NEED TO BE BENT OR TWEEKED AS NEEDED.
