POWER BRAKE BOOSTER

$149.95

In Stock

9″

Fits:
Chevrolet Nova 1962-1967
Packaging
EACH
SKU/Part#
29024

Description

NOVA NOTE:
COMPLETE WITH LINKAGE & FIREWALL GASKET

APPLICATION:
62-67 4 WHEEL DRUM, DISC/DRUM, DISC/DISC

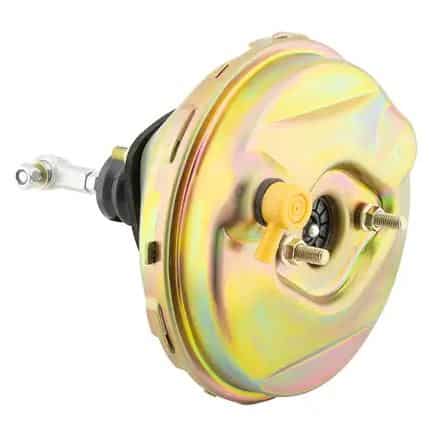

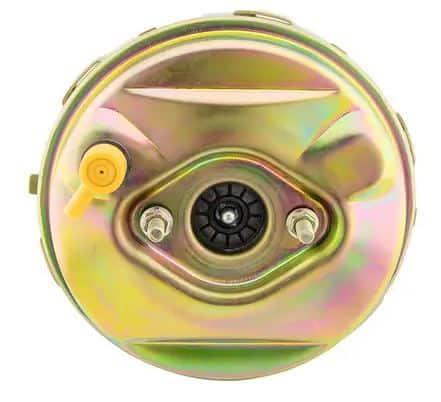

9″ DELCO STYLE SINGLE DIAPHRAGM POWER BRAKE BOOSTER.

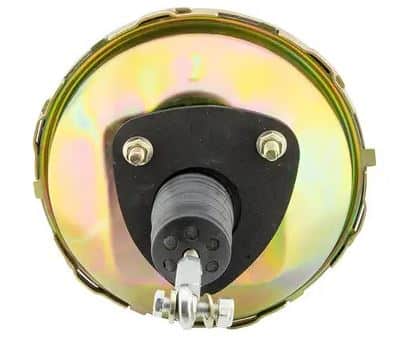

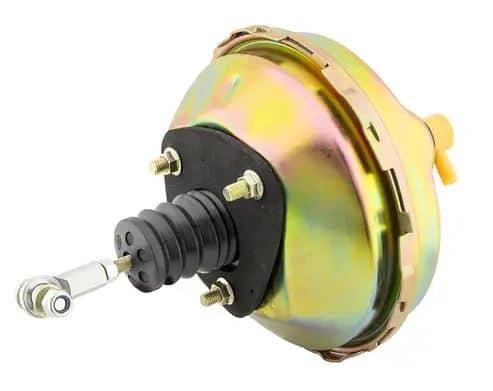

3 STUDS ON THE REAR OF THE BOOSTER MOUNT TO THE FIREWALL JUSTLIKE GM DID IT! THE THREE STUDS MAKE THIS A NOVA ONLY BOOSTER.

A THIRD HOLE MUST BE DRILLED AT DIMPLE ON BOTTOM BELOW 61039 PLASTIC PLUG–SEE PHOTO OF FIREWALL
PLASTIC PLUG 61039 NEEDS TO REMOVED FOR BOOSTER ROD CLEARANCE
THE TOP DIMPLEREQUIRES A SHEET METAL STYLE SCREW TO REINFORCE THE FIREWALL (SEE INSTALL INSTRUCTIONS)

MASTER CYLINDER STUD REMOVAL:
STUDS IN FIREWALL (THAT HELD MASTER CYLINDER) NEED TO BE REMOVED—62-66 STUDS HAVE SPLINES HOLDING THEM TO THE UNDER DASH(BRIDGE) BRACKET FROM THE FIREWALL TO THE LOWER DASH. USING NUTS (DOUBLE NUTTED) TO KEEP CENTER USE AN AIR CHISEL/HAMMER WITH POINTED END THIS SHOULD REMOVE THE MASTER CYLINDER MOUNTING BOLTS. 67 MASTER CYLINDER MOUNTING STUDS ARE WELDED TO THE UNDERDASH BRACKET, THIS BRACKET WILL NEED TO BE TAKEN OUT OF THE CAR TO REMOVE THE BOLTS.

62-66 NOVA WHEN USING THIS BOOSTER WITH DUAL MASTER CYLINDER AN INDENTATION MAY NEED TO BE PUT IN THE DRIVERS SIDE SHOCK TOWER FOR CLEARANCE.
67 NOVA WAS THE FIRST YEAR FOR DUAL MASTER CYLINDER THEREFORE THE FIRST YEAR FOR THE INDENTATION, THIS PROVIDES CLEARANCE FOR THE BRAKE LINES
